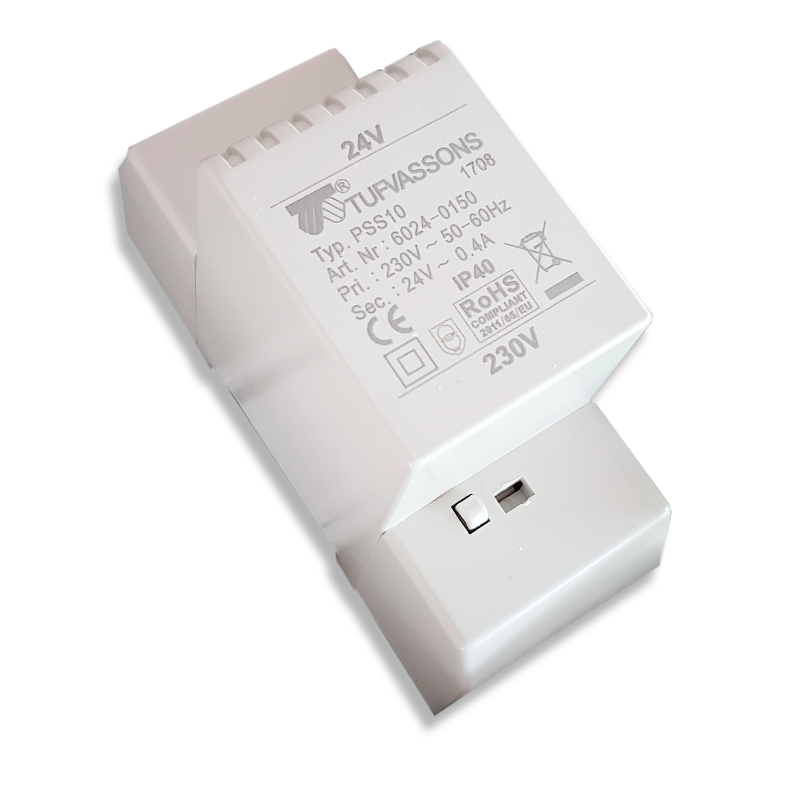

Transformator, DIN-Skena, 230 VAC --> 24VAC
DIN skena transformator/ström försörjning. 230VAC 50...60 Hz --> 24VAC. 10VA.
Data:

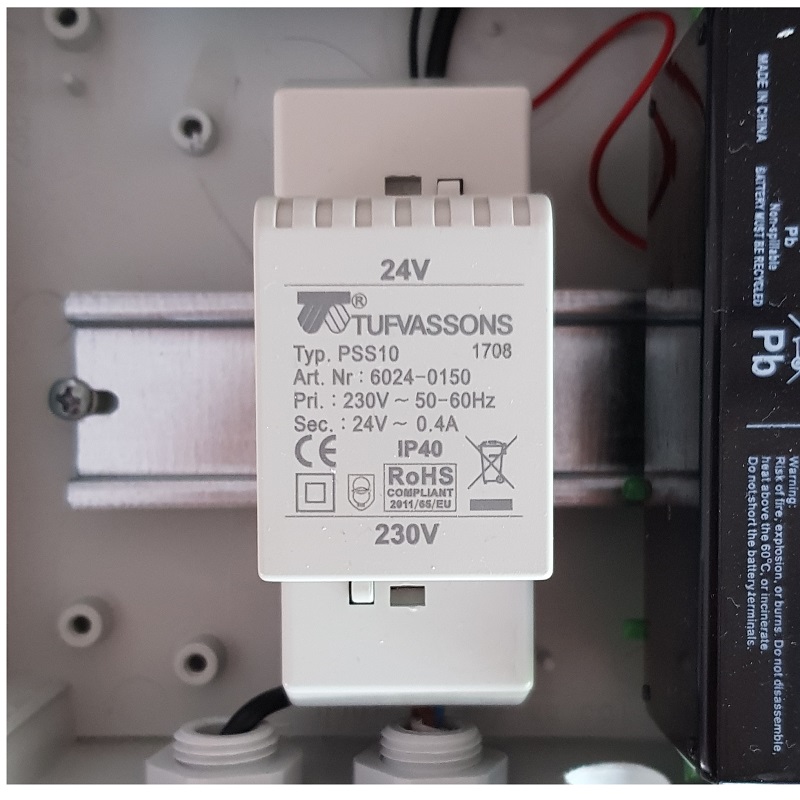

- Safety transformer for mounting on DIN-rail or wall (with screw)
- Dual-insulated design (class II), earthing not needed
- Integral PTC protection on the secondary side, resets when power is cut
- Enclosure of self-extinguishing thermoplastic
- Only for installation by a qualified electrician
- Manufacturing standard EN61558
Primary: 230 VAC, 50...60 Hz
Secondary voltage: 24 VAC
Power: 10 VA
Length: 66 mm
Width: 36.5 mm
Height: 93 mm
Depth: 66 mm
Protection rating: IP40
Weight: 320 g
Test voltage: 4.2 kV
