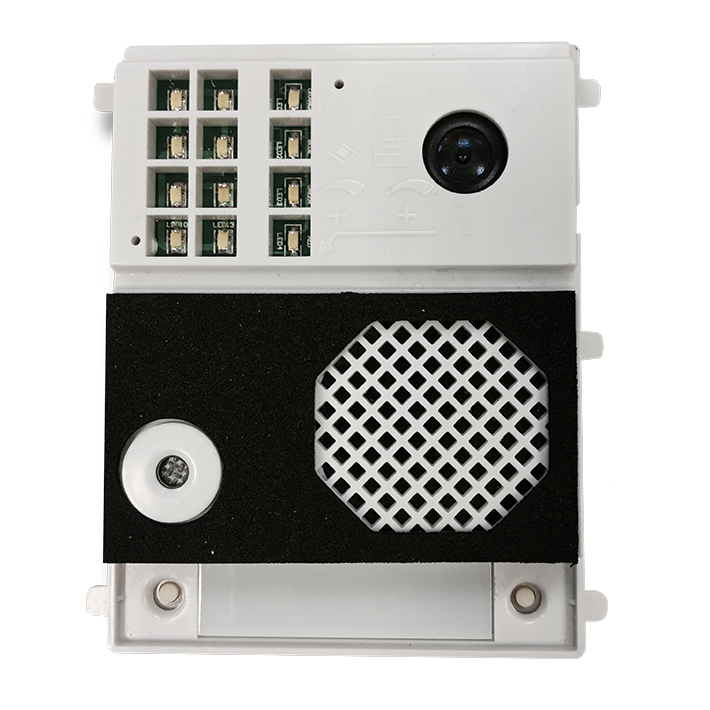

EL632/IP - Video module IP (Kameramodul till IPLUS)
Detta är Ljud och Bild modulen till IP-Porttelefonsystemet IPLUS. Kan användas med upp till 80 knappar på ett dörrpanel. Används tillsammans med EL610D
Modulen störmförsörjs via POE "Power Over Ethernet" vilket betyder att man strömförsörjer genom nätverkskabeln.
Data:
For Nexa push buttons door panels.
IP digital installation.
Audio level and microphone sensitivity regulation.
640 x 480 VGA camera with 120° wide angle lens and light emitters for night vision.
Privacy on audio, video and door open progresses.
Electronic call with acoustic acknowledgement signal, confirming the call is in progress, the system is busy or the lock is activated.
Connection to push button modules using small flat cables provided with the modules.
Each push button can call to one or several IP addresses (apartment units)
Two relay outputs with selectable activation time.
Includes two push buttons.
- Serverless system: don’t requires a computer connected to the network.
- Supports Class A, Class B and Class C Ethernet networks.
- Connections for external microphone and speaker.
- Multichannel conversation: system never becomes busy.
- Calls can be transferred to a selectable IP address in case that called apartment doesn’t reply or during a period of time.
The necessary components for a system of these characteristics are:
- These push buttons panels allow configurations of up to 20 push buttons. For higher number of apartments coded panel 7402/IP LCC can be used.
- Use one EL642/IP module for each audio panel. When systems with more than 2 push buttons, order as many EL610A push buttons electronic modules as required for the panel. In case of panels with more than one horizontal module, use one RAP-610A link cable for each additional horizontal module.
- Use Nhea IP hands free audio unit. The maximum number of units inside the same apartment is eight.
- Panel is to be powered through a PoE switch.
- Use a power supply according with the lock release to be connected.
- Is it possible to connect units in daisy chain configuration by using T-SWITCH.
