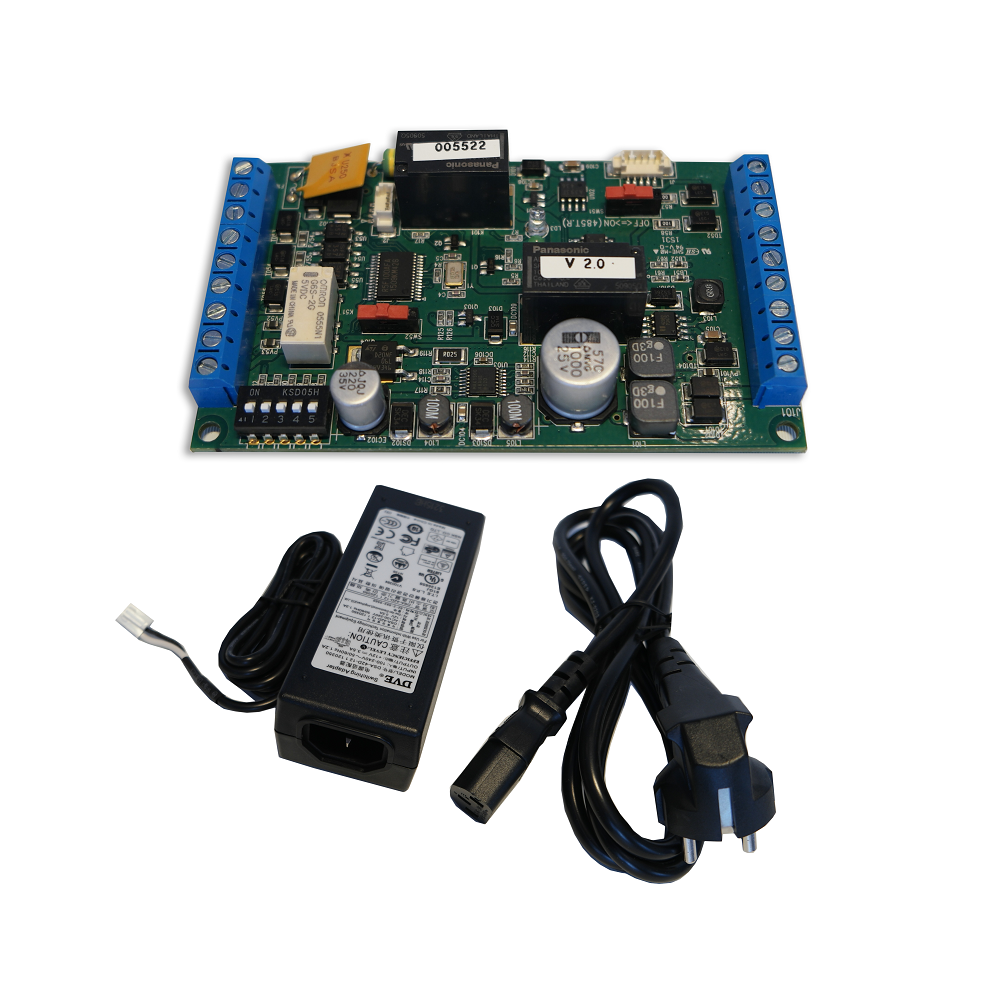

BLC015B / Lock controller - Kretskort & adapter

Pris: 5 554,83 kr
Artikelnr: 08432
Köp:

BLC015B / Lock controller - Kretskort & adapter

Minicentral / passersystem för 2 fingeravtrycksläsare. Enheten fungerar som strömförsörjning och har 2 reläutgångar, 5 ingångar som kan användas med våra fingeravtrycksläsare. Kommunicerar via RS485 eller Wiegand ingång. Kretskortet kan ha batteribackup och en exitknapp.

1.1. Product Summery

- Product is designed to integreated with access control with supply power.
- Available for integrate with single lock. Support various communications such as RS-485 and Wiegand.
- Able to choose between NC, NO for 2 contact relay.
- When Adapter power failure back-up battery mode starts automatically.(OPTION)
- Battery Charge circuit is equipped.
- Over Voltage/current protection circuit is equipped.

1.2. Product Specifications

Adapter: 12V 2.5A
Main input: DC12±2V
Main current: Normally: 80±15mA
Relay: 2A at 30VDC
Relay Output: 1 Relay NC, NO dry contact
Lock availability: DC 12V Max Current 1A
Status LED:Power: Red, RS485: Green, Lock : Blue
Sensor input: 3Port Inside Open 0, Lock/Door Status 0

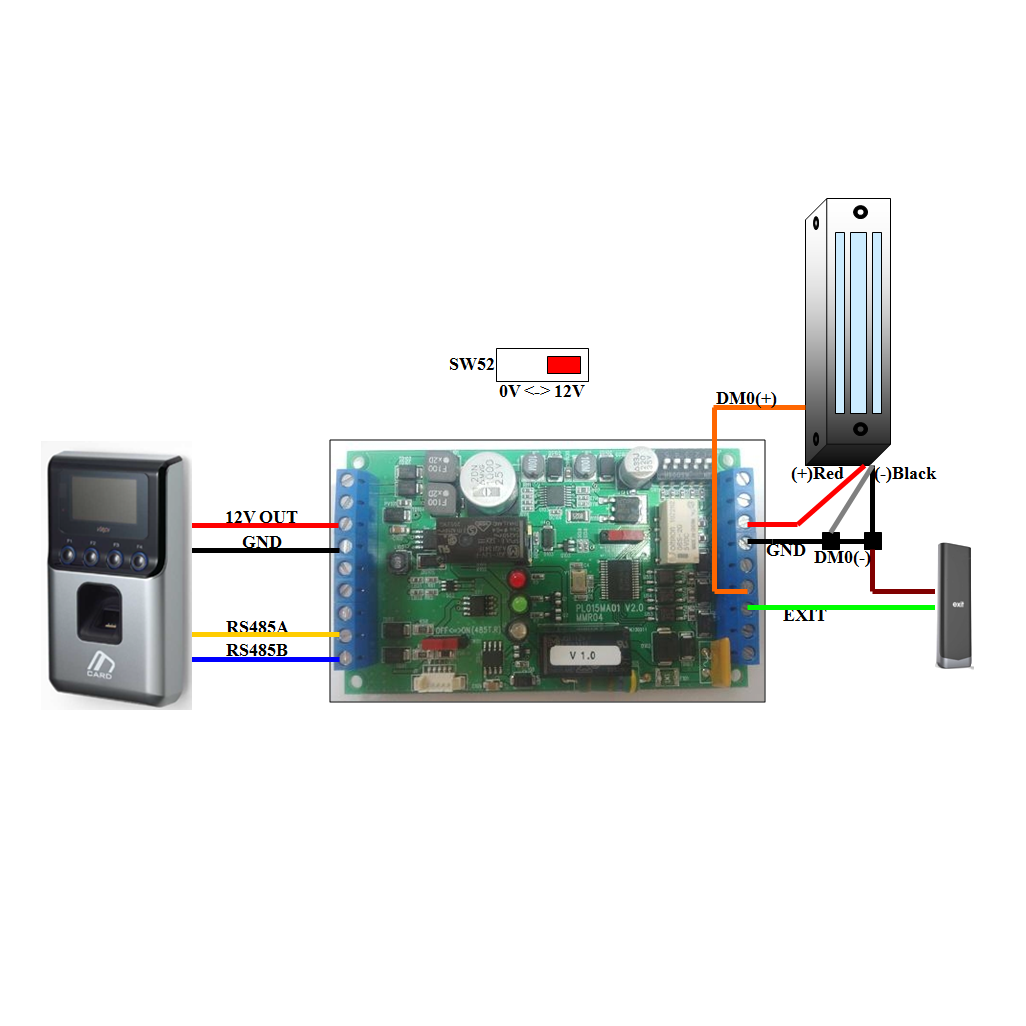

Connector:

J101:

1 - 12V IN
2 - GND
3 - 12V OUT
4 - GND
5 - Wiegand IN0
6 - Wiegand IN1
7 - GND
8 - RS-485A
9 - RS-485B

J51

1 - Bat(+)
2 - GND
3 - IN 0
4 - IN 1
5 - IN 2
6 - GND
7 - NC
8 - NO
9 - COM

BLC015B / Lock controller - Kretskort & adapter

Minicentral / passersystem för 2 fingeravtrycksläsare. Enheten fungerar som strömförsörjning och har 2 reläutgångar, 5 ingångar som kan användas med våra fingeravtrycksläsare. Kommunicerar via RS485 eller Wiegand ingång. Kretskortet kan ha batteribackup och en exitknapp.

1.1. Product Summery

- Product is designed to integreated with access control with supply power.
- Available for integrate with single lock. Support various communications such as RS-485 and Wiegand.
- Able to choose between NC, NO for 2 contact relay.
- When Adapter power failure back-up battery mode starts automatically.(OPTION)
- Battery Charge circuit is equipped.
- Over Voltage/current protection circuit is equipped.

1.2. Product Specifications

Adapter: 12V 2.5A
Main input: DC12±2V
Main current: Normally: 80±15mA
Relay: 2A at 30VDC
Relay Output: 1 Relay NC, NO dry contact
Lock availability: DC 12V Max Current 1A
Status LED:Power: Red, RS485: Green, Lock : Blue
Sensor input: 3Port Inside Open 0, Lock/Door Status 0

Connector:

J101:

1 - 12V IN
2 - GND
3 - 12V OUT
4 - GND
5 - Wiegand IN0
6 - Wiegand IN1
7 - GND
8 - RS-485A
9 - RS-485B

J51

1 - Bat(+)
2 - GND
3 - IN 0
4 - IN 1
5 - IN 2
6 - GND
7 - NC
8 - NO
9 - COM
