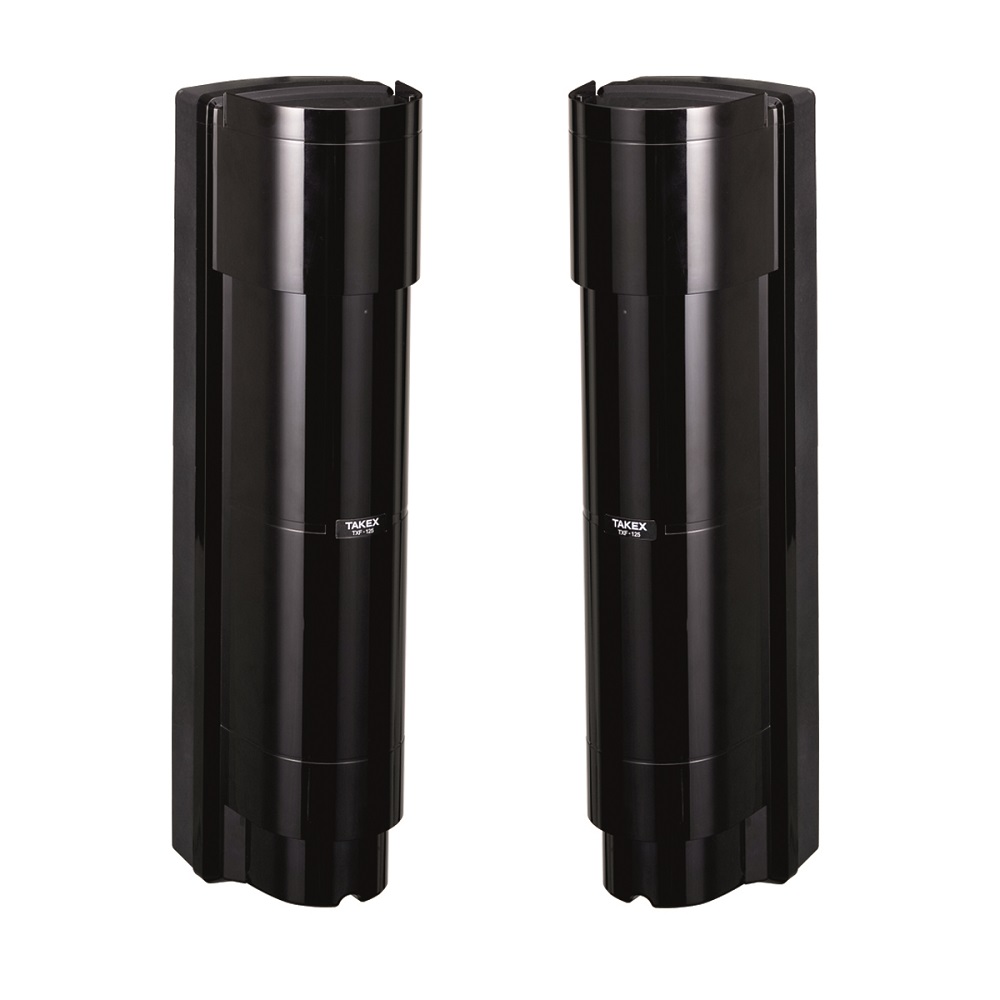

TXF-125E - Batteridriven Linjedetektor (5 års batteri)

Pris: 13 354,69 kr
Artikelnr: 11236
Köp:

TXF-125E - Batteridriven Linjedetektor, 4 strålar (max 100 meter) IP65

TXF-125E - En batteridriven linjedetektor med 4 synkroniserade strålar. Reducerar installationskostnaden som tillkommer vid kabeldragningar och liknande. Perfekt för  tillfälliga lösningar där du snabbt måste skydda och övervaka en arbetsplats eller liknande. Enhten kan också användas som en permanent lösning då enheten har ungefär 5 års batteritid. TXF-125E klara en räckvidd på max 100 meter.

Beställnignsvara med 1-2 veckors leverans.

Features:

- 4 x Synchronised high power beams
- 4 Selectable operation ranges 25/50/75/100m
- 4 Selectable beam channels to prevent crosstalk
- Up to 5 year battery life using 2 x LS 33600 (3.6V 17Ah) batteries per unit
- Increased beam separation minimises nuisance alarms
- Vivid internal colour aids beam alignment procedure
- ±90° horizontal ±20° vertical adjustable sensor heads
- Environmental monitoring circuit
- IP65 housing

Data:

Model: TXF-125E
Detection system: Near infrared pulsed beam interruption system (TR-RE 4 beam simultaneous interruption)
Infrared beam: Single modulation pulsed beam by LED (near infrared beam light-emitting diode)
Protection distance: Outdoor 330ft (100m) or less
Beam power setting: 330ft (100m) / 245ft (75m) / 165ft (50m) / 82ft (25m)
Max. arrival distance: 10 times (1000m)
Response time: 0.05 sec, 0.10 sec, 0.25 sec, 0.5 sec
Battery: SAFT: LS 33600 (or equivalent) 3.6V, 17Ah
Battery life:

- Transmitter = Up to 5 years* (2 batteries)
- Receiver = Up to 5 years* (2 batteries) *Approximate, not guaranteed

Beam adjustment: Horizontal: ±90°, Vertical: ±20°
Alarm LED: Red LED (Receiver) ON: when an alarm is initiated
Attenuation LED Red LED (Receiver) ON: when an alarm is initiated
Ambient temperature range: -10°C to +50°C (14°F to 122°F)

Functions:

- Modulated beam frequency selection
- Tone indicator
- Repeat output
- Monitor jack
- Response time adjustment
- Upper/Lower beam switch
- Low battery indication
- Wireless alignment checker connecting function
- Battery saving function
- Battery sharing

IP rating: IP65
Mounting positions: Outdoor, Indoor

Weight:
- Transmitter: 1.5kg (without batteries),
- Receiver: 1.5kg (without batteries)

Appearance Cover: PC resin (Wine Red), Base: ASA resin (Black)
