Erbjudandet räcker tills lagret är slut. Teltonika RUT230 - 3G Router

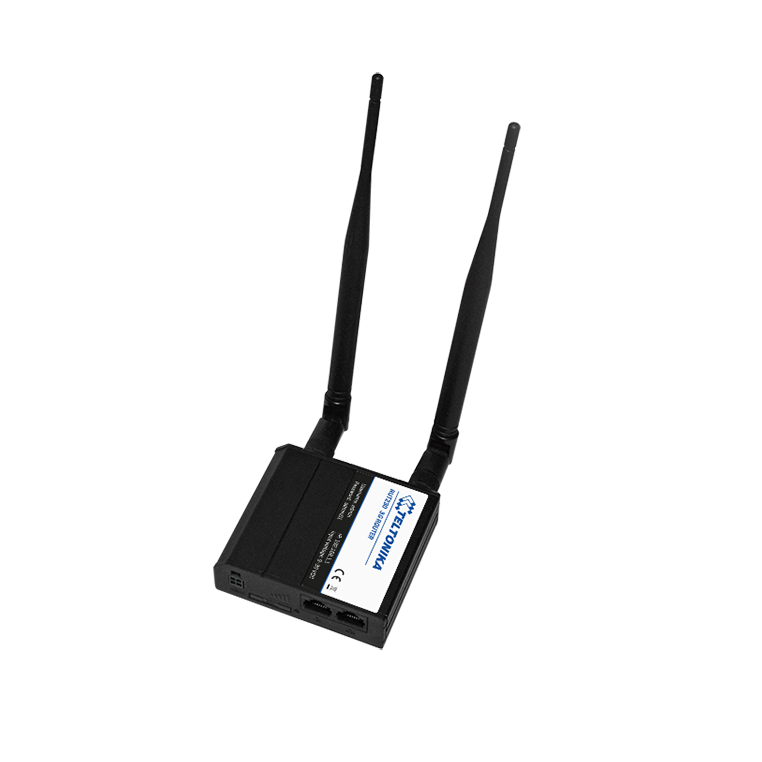

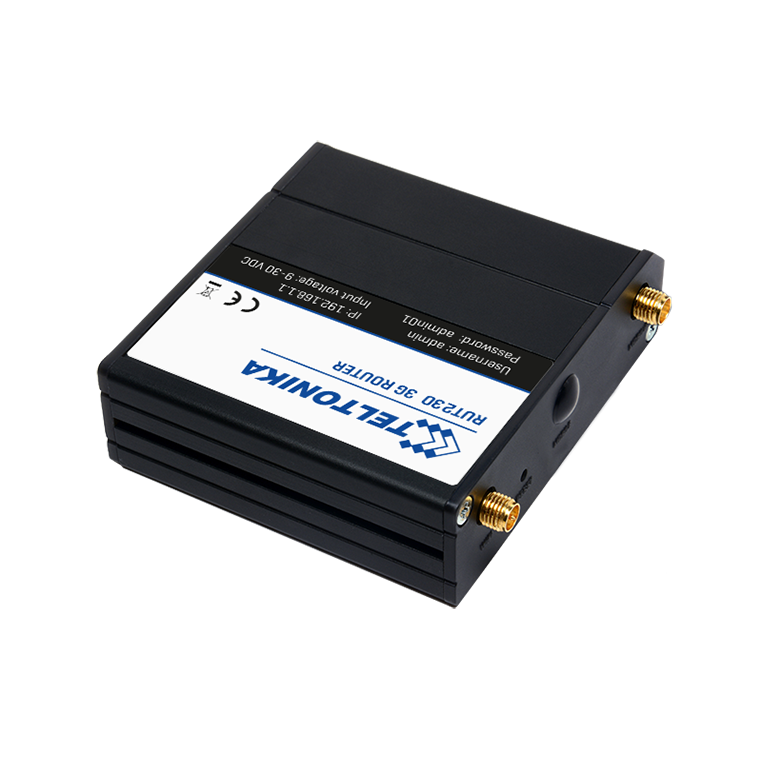

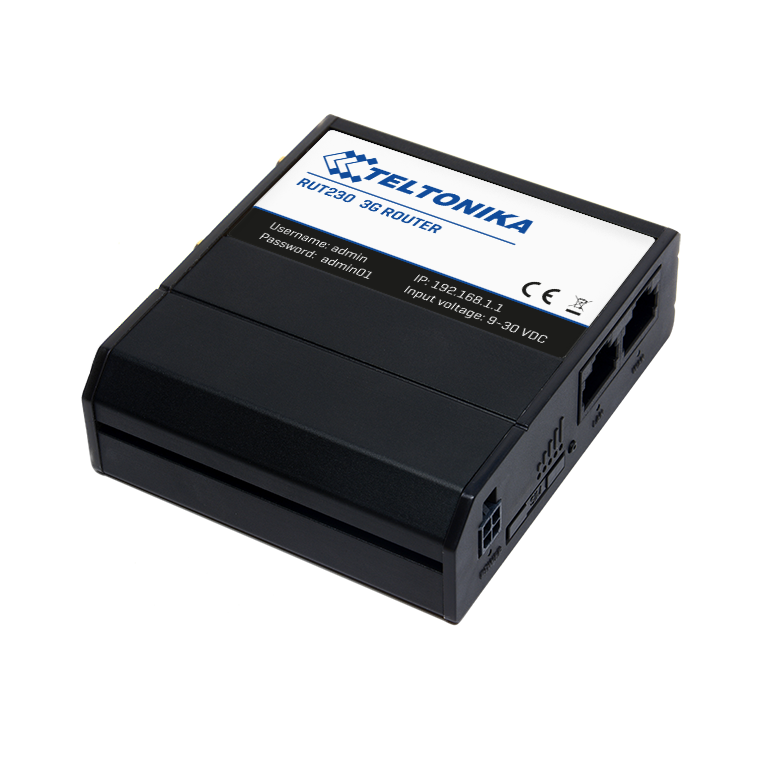

RUT230 is a compact, cost-effective and powerful industrial router for professional applications. Router delivers high performance for mission-critical cellular communication. Equiped with external SIM holder and signal strength status LEDs, it ensures easy network management. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.

3G support

Perfect M2M router for industrial solutions. It’s cost-effectiveness really shines through in situations where a huge mobile data throughput is not needed. Router’s 3G module provides enough speed to satisfy both M2M data and some regular internet usage demands.

Wireless network

With built-in WiFi connectivity you can free yourself from cumbersome Ethernet-based on-site maintenance or simply save some smartphone SIM data for online check-ups and work e-mail attachment downloads.

Input and Output

With configurable inputs you can monitor external events, be it water level threshold crossing or a simple door sensor. Receive alerts remotely either via SMS or e-mail.

External SIM slot

External SIM slot let’s you insert or change SIM card with relative ease, and the device will connect to the network right away without any need of reboot.

2x Ethernet ports

Small and compact device for tight and compact spaces with limited amount of external devices. If one of the ports remains free, it can be used as either main internet connection or a backup connection.

RMS support

Manage your routers fleet remotely. With full support of centralized Teltonika Remote Management System you will be able to access, control and monitor all of your routers within a single platform. This will help you make better decisions for future installments and best-use practices. Try RMS for free by clicking this link and registering your free demo account!

TECHNOLOGY

3G – Up to 14.4 Mbps
2G – Up to 236.8 kbps
WiFi – Up to 150 Mbps
GPRS
Ethernet – 2 ports
SMS

HARDWARE

Digital output – 1
DIN – digital input – 1
1x SIM Card
1x LAN 10/100Mbps Ethernet port
1x WAN 10/100Mbps Ethernet ports
IEEE 802.11b/g/n WiFi standards
Durable aluminum housing
Mobile antenna type – 1 x SMA for 3G
WiFi antenna type – 1 x RP-SMA
Input voltage range – 9 - 30 VDC
Operating temperature range – -40 °C to 75 °C
Storage temperature range – -45 °C to 80 °C
Power consumption – < 5W
Mounting options – DIN Rail, Wall
LED indication – 2x connection status, 5x connection strength, 1x Power

FIRMWARE

Static routes
NTP
Wireless Hotspot
Wireless Client
Wireless AP
Ping reboot
Periodic reboot
Real-time graphs
Backup WAN
Mobile Traffic counter
Connection status overview bar
Configuration backup/restore
VRRP
IPsec
GRE Tunnel
OpenVPN
PPTP
SNMP
SNMP Trap
Send/receive SMS
Status via SMS
SMS reboot
Mobile enable/disable via SMS
Wireless enable/disable via SMS
OpenVPN enable/disable via SMS
Web Filter
Mobile on Demand
Mobile Data Limit
Configuration Profiles
Event logging
QoS
Call Utilities
FOTA (Firmware Over The Air)
Disable Roaming
SMS gateway
Access control safety
VLAN
CLI
Firewall
IP/MAC filter
DHCP server
Dynamic DNS
RMS support

Technichal details:

UMTS/HSPA+:

900/2100 MHz
HSDPA mode: 14.5 Mbps (Cat 10) downlink speed
HSUPA mode: 5.76 Mbps (Cat 6) uplink speed
UMTS mode: 384 kbps DL, 384 kbps UL
Power Class 3 (24dBm +1/-3dB) for UMTS bands

GSM/GPRS/EDGE:

850/900/1800/1900 Mhz
GPRS/EDGE Multi-slot Class 12
Power Class E2 (27dBm ±3dB) for EDGE 850/900
Power Class E2 (26dBm ±3/-4dB) for EDGE 1800/1900
Power Class 4 (33dBm ±2dB) for GSM 850/900
Power Class 1 (30dBm ±2dB) for GSM 1800/1900

ETHERNET:

IEEE 802.3, IEEE 802.3u standards
1 x LAN 10/100Mbps Ethernet port
1 x WAN 10/100Mbps Ethernet port
Supports auto MDI/MDIX

WIFI:

IEEE 802.11b/g/n WiFi standards
AP and STA modes
64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
2.401-2.495GHz WiFi frequency range
20dBm max WiFi TX power
SSID stealth mode and access control based on MAC address
