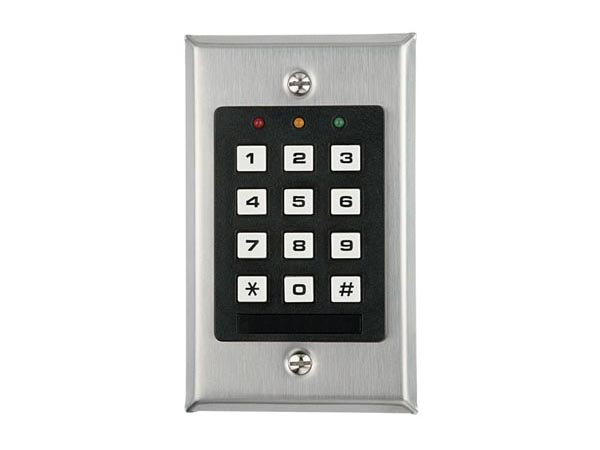

HAA9523S - Kodlås inomhus , 3 utgångar (118x74x48 mm)
HAA9523S är ett kodlås för montering inomhus. Kodlåset har 2 reläutgångar där relä 1 kan styras med 100 koder och relä 2 kan styras med 10 koder. Kodlåset har en svart bakbox.
Information:
The HAA9523S is a self-contained security keypad and is a reliable and cost-effective solution for residential and commercial installations. It is compatible with virtually any electric locking device and can be used as a control for security systems, automatic operators and machinery. Over 100 million combinations are possible for the user codes (multi-user mode). Programmed data stored in the system is non-volatile. Comes with tamper switch and plastic case. Audible key operation.
Data:
- outputs:
output 1: 5A, N.C. & N.O. dry contacts, 30Vdc max
output 2: 1A, N.C. & N.O. dry contacts, 30Vdc max
output 3: NPN transistor open collector output for aux. control purposes
- 3 LED lamps showing external system status
- interlock facility: yes
- output 1 locking control: yes
- door propped-up warning: yes
- auto or manual code entry: yes
- relay activation announcment: yes
- pacifier tone on/off options: yes
- key activation output: yes
- door auto relock: yes
- alarm output: yes
- duress output: yes
- with onboard LED indication for showing keypad operation status
- operating voltage: 12-24V (AC or DC)
- duress output: NPN transistor with open collector output, switches to ground (-) when activated, 100mA/25VDC max
- available codes: user1 & 2, super user, master, duress and accelerated codes
- code combinations: 111.111.100 possibilities
- dimensions: 118 x 74 x 48mm
- weight: 190g
