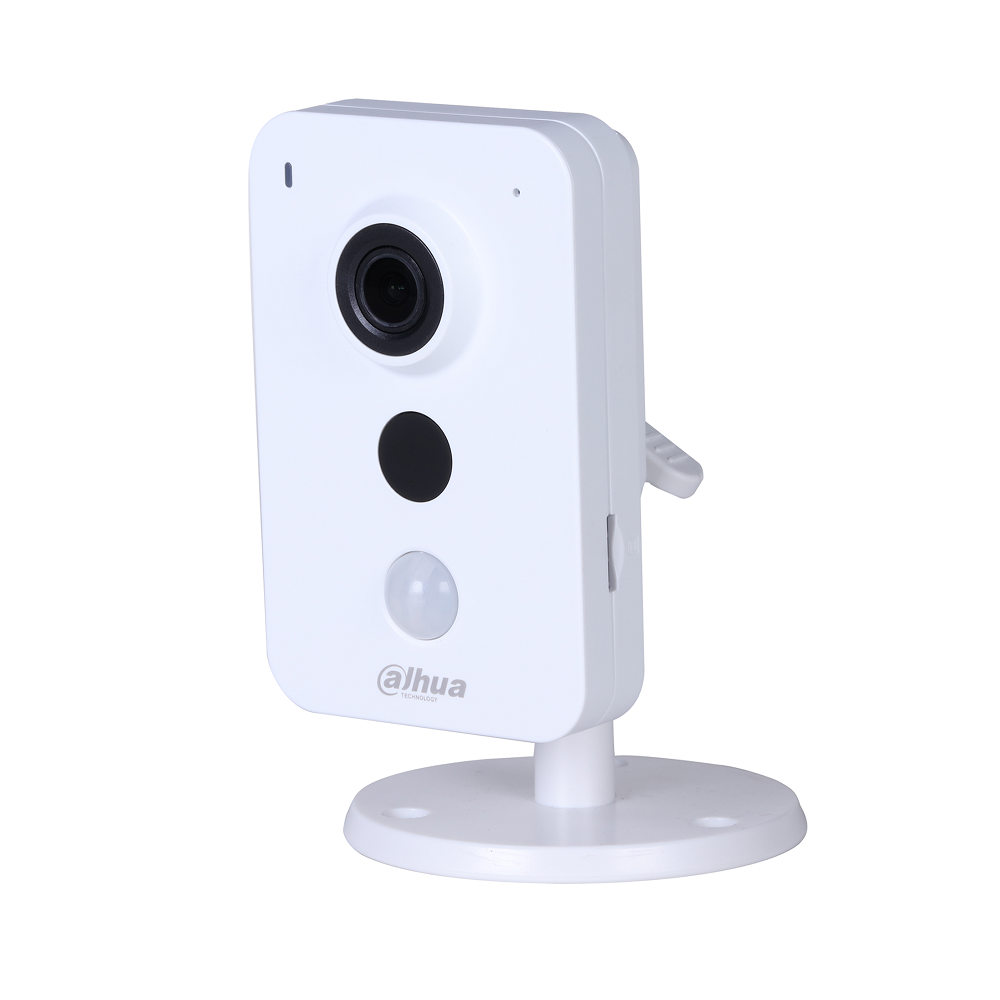

IPC-K15P - Dahua - Kamera till Holars 384 (WIFI & LAN)

  • Pris: 1 804,69 kr
    Artikelnr: 108500
    Köp:

    IPC-K15P - Dahua - Kamera till Holars 384 (WIFI & LAN)

    Kameran från Dahua kan kopplas via lan kabel eller WiFI nätverket. Kameran kan kopplas till vår larmcentral Holars 384 när den används med appen Eldes secuity. I Eldes Security appen kan du koppla dina larmzoner mot kameran så att kamerabilden från den triggade zonen öppnas direkt i din mobil. Inomhuskameran har 1,3 megapixels upplösning och en lins på 2.8 mm och använder sig av H.264 komprimering. Det finns möjlighet att ha SD-kort i enheten för inspelning av video.

    Kameran går såklart också att använda mot Dahuas / Imous egna app och du kan gå använda kamerans andra funktioner som exempelvis trigga kamera via den inbyggda PIR detektorn, aktivera inbyggd siren, lagring via cloud prata genom kameran med högtalare och mikrofon. Dessa funktioner finns tyvärr inte när man kopplar kameran mot Eldes larmcentral. Kameran kan endast kopplas till en av cloudtjänsterna. Antingen dahuas cloud eller mot Eldes cloud mot Holars 384 larmcentralen.

    IPC-K15

    1.3MP K Series Wi-Fi Network Camera

    - 1/3” 1.3Megapixel progressive CMOS
    - H.264& MJPEG dual-stream encoding
    - 25/30fps@1.3M (1280×960)
    - 92° horizontal view angle
    - IR Diatance 10m
    - Easy4ip cloud support
    - Wi-Fi/Lan support
    - Micro SD card slot, up to 128GB
    - Alarm in/out,PIR
    - DC12V

    Camera

    Image Sensor: 1/3” 1.3Megapixel progressive CMOS
    Effective Pixels 1280(H) x960(V)
    RAM/ROM 256MB/16MB
    Scanning System Progressive
    Minimum Illumination 0.5Lux/F2.2(Color), 0Lux/F2.2(IR on)
    S/N Ratio More than 50dB
    IR Distance Distance up to 10m(33ft)
    IR On/Off Control Auto/ Manual
    IR LEDs 1

    Lens Type Fixed
    Mount Type Board-in
    Focal Length 2.8mm
    Max. Aperture F2.2
    Angle of View H:92°;V:66°
    Focus Control Fixed
    Close Focus Distance N/A

    PTZ Pan/Tilt Range: Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360°

    Compression: H.264/H.264B/H.264H/MJPEG
    Streaming Capability 2 Streams
    Resolution 1.3M(1280×960)/720P(1280×720)/
    VGA(640 ×480)/QVGA(320×240)
    Frame Rate1.3M(1~25/30fps)VGA/QVGA(1~25/30fps)

    Bit Rate Control CBR/VBR
    Bit Rate H264:32K ~ 10240Kbps
    Day/Night Auto(ICR) / Color / B/W
    BLC Mode BLC / HLC / DWDR
    White Balance Auto/Natural/Street Lamp/Outdoor/Manual
    Gain Control Auto/Manual
    Noise Reduction 3D DNR
    Motion Detection Off / On (4 Zone, Rectangle)
    Electronic Image Support
    Smart IR Support
    Digital Zoom 16x
    Flip 0°/90°/180°/270°
    Mirror Off / On
    Privacy Masking Off / On (4 Area, Rectangle)
    Audio Compression G.711A;G.711Mu;AAC

    Ethernet RJ-45 (10/100Base-T)
    Wi-Fi Wi-Fi(IEEE802.11b/g/n),50m(open field)
    Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;
    Bonjour;Multicast;ICMP;IGMP;
    InteroperabilityONVIF, PSIA, CGI
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users/20 Users
    Edge Storage NAS(Network Attached Storage)
    Local PC for instant recording,Micro SD Card 128GB
    Web Viewer IE, Chrome, Firefox, Safari
    Management Software Smart PSS, DSS, Lechange
    Smart Phone iOS, Android
    Certifications
    CE (EN 60950:2000)
    UL:UL60950-1
    FCC: FCC Part 15 Subpart B

    Video Interface N/A
    Audio Interface Built-in Mic & Speaker
    RS485 N/A
    Alarm 1/1,PIR
    Power Supply DC12V
    Power Consumption <4.5W

    Operating Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
    Strorage Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
    Ingress Protection N/A

    Vandal Resistance N/A
    Casing Plastic
    Dimensions Φ78.5mm×127.8mm(3.09'’ x5.03’’)
    Net Weight0.31Kg (0.68lb)
    Gross Weight0.45Kg (0.99lb)



    IPC-K15P - Dahua - Kamera till Holars 384 (WIFI & LAN)

    Kameran från Dahua kan kopplas via lan kabel eller WiFI nätverket. Kameran kan kopplas till vår larmcentral Holars 384 när den används med appen Eldes secuity. I Eldes Security appen kan du koppla dina larmzoner mot kameran så att kamerabilden från den triggade zonen öppnas direkt i din mobil. Inomhuskameran har 1,3 megapixels upplösning och en lins på 2.8 mm och använder sig av H.264 komprimering. Det finns möjlighet att ha SD-kort i enheten för inspelning av video.

    Kameran går såklart också att använda mot Dahuas / Imous egna app och du kan gå använda kamerans andra funktioner som exempelvis trigga kamera via den inbyggda PIR detektorn, aktivera inbyggd siren, lagring via cloud prata genom kameran med högtalare och mikrofon. Dessa funktioner finns tyvärr inte när man kopplar kameran mot Eldes larmcentral. Kameran kan endast kopplas till en av cloudtjänsterna. Antingen dahuas cloud eller mot Eldes cloud mot Holars 384 larmcentralen.

    IPC-K15

    1.3MP K Series Wi-Fi Network Camera

    - 1/3” 1.3Megapixel progressive CMOS
    - H.264& MJPEG dual-stream encoding
    - 25/30fps@1.3M (1280×960)
    - 92° horizontal view angle
    - IR Diatance 10m
    - Easy4ip cloud support
    - Wi-Fi/Lan support
    - Micro SD card slot, up to 128GB
    - Alarm in/out,PIR
    - DC12V

    Camera

    Image Sensor: 1/3” 1.3Megapixel progressive CMOS
    Effective Pixels 1280(H) x960(V)
    RAM/ROM 256MB/16MB
    Scanning System Progressive
    Minimum Illumination 0.5Lux/F2.2(Color), 0Lux/F2.2(IR on)
    S/N Ratio More than 50dB
    IR Distance Distance up to 10m(33ft)
    IR On/Off Control Auto/ Manual
    IR LEDs 1

    Lens Type Fixed
    Mount Type Board-in
    Focal Length 2.8mm
    Max. Aperture F2.2
    Angle of View H:92°;V:66°
    Focus Control Fixed
    Close Focus Distance N/A

    PTZ Pan/Tilt Range: Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360°

    Compression: H.264/H.264B/H.264H/MJPEG
    Streaming Capability 2 Streams
    Resolution 1.3M(1280×960)/720P(1280×720)/
    VGA(640 ×480)/QVGA(320×240)
    Frame Rate1.3M(1~25/30fps)VGA/QVGA(1~25/30fps)

    Bit Rate Control CBR/VBR
    Bit Rate H264:32K ~ 10240Kbps
    Day/Night Auto(ICR) / Color / B/W
    BLC Mode BLC / HLC / DWDR
    White Balance Auto/Natural/Street Lamp/Outdoor/Manual
    Gain Control Auto/Manual
    Noise Reduction 3D DNR
    Motion Detection Off / On (4 Zone, Rectangle)
    Electronic Image Support
    Smart IR Support
    Digital Zoom 16x
    Flip 0°/90°/180°/270°
    Mirror Off / On
    Privacy Masking Off / On (4 Area, Rectangle)
    Audio Compression G.711A;G.711Mu;AAC

    Ethernet RJ-45 (10/100Base-T)
    Wi-Fi Wi-Fi(IEEE802.11b/g/n),50m(open field)
    Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;
    Bonjour;Multicast;ICMP;IGMP;
    InteroperabilityONVIF, PSIA, CGI
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users/20 Users
    Edge Storage NAS(Network Attached Storage)
    Local PC for instant recording,Micro SD Card 128GB
    Web Viewer IE, Chrome, Firefox, Safari
    Management Software Smart PSS, DSS, Lechange
    Smart Phone iOS, Android
    Certifications
    CE (EN 60950:2000)
    UL:UL60950-1
    FCC: FCC Part 15 Subpart B

    Video Interface N/A
    Audio Interface Built-in Mic & Speaker
    RS485 N/A
    Alarm 1/1,PIR
    Power Supply DC12V
    Power Consumption <4.5W

    Operating Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
    Strorage Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
    Ingress Protection N/A

    Vandal Resistance N/A
    Casing Plastic
    Dimensions Φ78.5mm×127.8mm(3.09'’ x5.03’’)
    Net Weight0.31Kg (0.68lb)
    Gross Weight0.45Kg (0.99lb)
