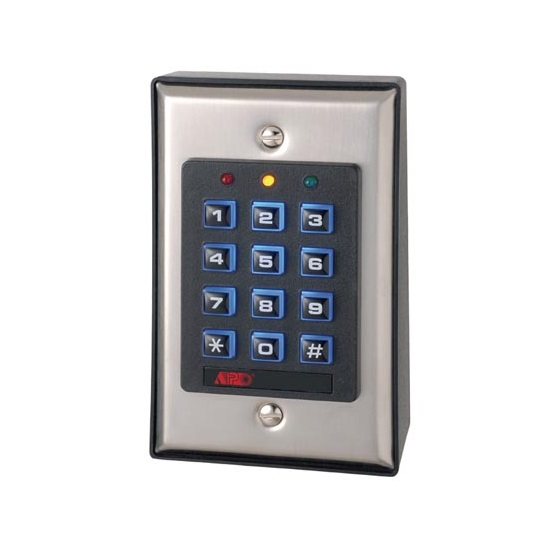

HAA85BLN - Kodlås inomhus, 3 utgångar (117x72x42)
HAA85BLN är ett kodlås för montering inomhus. Kodlåset har 2 reläutgångar där relä 1 kan styras med 100 koder och relä 2 kan styras med 10 koder. Kodlåset har en svart bakbox.
The HAA85BLN is a self-contained digital access keypad designed for residential and commercial installations. It is mainly for stand alone electric lock and inter-lock systems operating with 12 VDC power supply. It is virtually compatible with any electric locking device. Apart from that it is also a perfect choice for controlling security systems, automatic operators and machinery.
Features
- Backlit keyboard: dim in stand-by, brightens for 10 seconds at the press of a key
Specifications
- Outputs:
- Output 1: solid state relay 3 A / 12 VDC
- Output 2: mechanical relay 1 A / 24 VDC max
- Output 3: NPN open collector 100 mA / 24 VDC
- 3 LED lamps showing external system status
- Interlock facility
- Output 1 locking control
- Door propped-up warning
- Auto or manual code entry
- Relay activation announcement
- Pacifier tone on/off options
- Key activation output
- Door auto relock
- Alarm output
- Duress output
- With onboard LED indication for showing keypad operation status
- Operating voltage: 12 VDC
- uress output: NPN transistor with open collector output, switches to ground (-) when activated, 100mA/25VDC max
- Available codes: user1 & 2, super user, master, duress and accelerated codes
- Code combinations: 111.110.000
- Dimensions: 117 x 72 x 42 mm
- Weight: 180 g
- User manual: English
