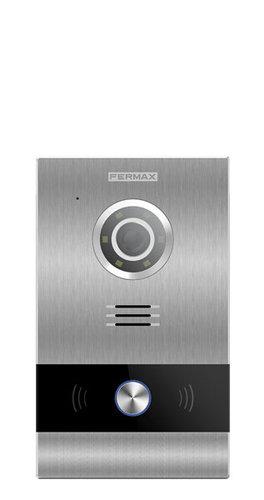

MILO 1 Pushbutton panel INOX

Pris: 11 138,53 kr
Artikelnr: 08972
Köp:

Box till X500 för infälld montering.

1/W VIDEO MEET PANEL finns presenterad i två olika versioner: en version med IC-läsare och en version utan läsare.

FUNKTIONER • Aluminumprofil • Härdat glas med hög motståndskraft • Högdefinitions färgkamera • Låg energiförbrukning • Bred arbetsmiljö • Linux Modular Structure • Access Control Integrated (Only for Panel with Reader) • Available In 10 Languages • Remote Firmware Update FUNCTIONS CALL TENANT Visitors are able to call the desired tenant from 1L panel. Alternatively, it can be configured to call one guard unit acting as an emergency call panel. REFERENCES Ref. 9533 1/W VIDEO MEET PANEL Ref. 9534 1/W VIDEO MEET PANEL (+ PROXIMITY) Ref. 9543 MEET PANEL FLUSH BOX – S.

Not compatible with Lift Control function

System: • CPU: ARM Cortex-A7 1.2GHz • FLASH: 128M • SDRAM: 64M Audio Features: • G.711 protocol • Audio level 17.7 dB Camera: • 1/3” CMOS Color • 90o visual angle: Vertical 72º, Horizontal 54º • 1.3 Mega Pixels • Minimum illumination 0.5 LUX • AWB LED: • White LED • LM 60 mA Min. 24, Typ. 26 • View Angle 2θ1/2: 120 Power Consumption: • On standby: 125mA • Working: 250mA Working voltage: • 12 VDC Connectivity: • Ethernet RJ-45 Connector • Exit button and door sensor connection • NO, C, NC: Door lock release connection • Built in web server for configuration and remote management Working Environment: • Temperature: -10 oC – 70 oC • Humidity: 20 – 80% (Non-condensing) • IP 54 • IK 07 CONNECTIONS RJ-45 10/100 Base -T Ethernet +, -, : 12 Vdc power supply input BS, -, NA, SP: Exit button and door sensor connection NO, C, NC: Door lock release connection 485+, 485-: RS485 serial port for spare

Teknologi: MEET

Mått på produkten: 118x183x49 mm

Vikt: 0.756 kg

Mått på packad produkt: 8x25,5x16,5 cm

EAN 13: 8424299095332
