PTZ Mini styres från Appen

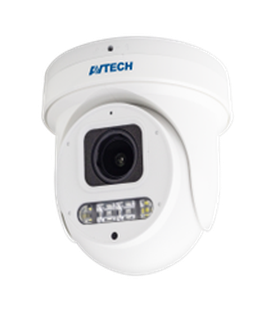

Detta är en ny PTZ-kamera för inomhusbruk. Kameran har inbyggd mirkrofon.
Objektiv kan Zooma in från 2,7-13,5 mm. Kan styras 40 grader upp och ner och 117 grader till sidorna. Kameran har också vitt ljus som kan kopplas på från Appen.
Device
Image Sensor 1/2.8” SONY CMOS
Max. Resolution 2560 x 1944
Lens f2.7 ~ 13.5mm / F1.6 ~ F2.2
Viewing Angle Tele 40˚ ~ Wide 117˚ (Diagonal)
Min Illumination 0.001 Lux (IR LED off), 0 Lux (IR LED on)
Shutter Speed AUTO, 1/25s ~ 1/100000s
LED 4 dual light (IR & warm) units
IR Effective Distance Up to 50 meters
Day / Night YES
WDR Mode YES (120dB)
RTC (real-time clock) YES
MicroSD Card Slot YES (up to 256GB)
▓ Video
Compression H265 / H.264
Video Resolution Main Stream 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P
Sub Stream D1 / VGA / 640x360 / 480x360 / CIF
Frame Rate 5MP @ 25FPS
Video Profile High profile / Main profile / Base profile
Multiple Video Streaming 2 streams
Bitrate Control 512Kbps - 12Mbps、VBR/CBR
Image Enhancement WDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC
Day / Night Switch Auto / Color / (B/W) / Timing
Forced Anti-flicker YES
Defog YES
White Balance Auto / Manual
Image Orientation Rotate / Mirror
Privacy Mask YES
Text Overlay YES
OSD Title Location / font size / text configurable; text input (English & Chinese characters) and image
upload (BMP) supported
▓ Audio
Microphone built-in YES
Speaker built-in YES
Encoding G.711-u / G.711-a
Audio Adjustment YES
▓ Alarm & Event
Detection Mode Motion / Human / Vehicle Detection
Detection Schedule YES
Motion Detection Area 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18
Detection Alert Audio alert with customized mp3 audio file(s)
