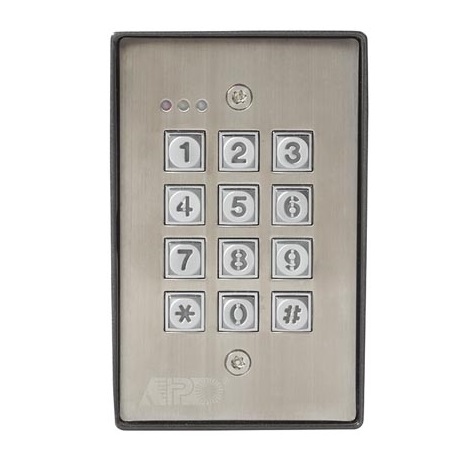

HAA9350 - Kodelås utomhus, IP66, 2 relä (125x79x54mm)

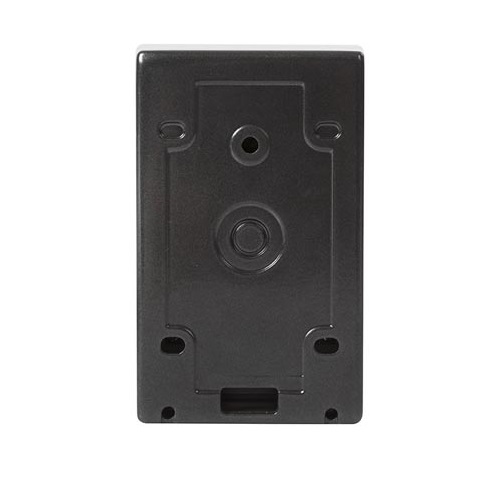

Kodlås för montering utomhus. Kodlåset har 2 reläutgångar där relä 1 kan styras med 100 koder och relä 2 kan styras med 10 koder. Kodlåset har en svart bakbox. IP 66.
Upplysta metallknappar.
1,5 mm rostfritt stål front.
Vandalsäker & Vattensäker. IP 65
Antal koder relä 1: 100
Antal koder relä 2: 10
Relä 1: 5A NO/NC
Relä 2: 1A aux NO/NC
Strömförsörjning: 12VDC eller 24VAC (ej inkluderat)
Mått: 125 x 79 x 46-54
Borstad front.
Över 100 millioner kombinationer med 4-8 siffror.
Singel lock / Interlock instalaltion.
Auto eller manual code entry
Utanpåliggande eller infälld.
Data:
Operation Voltage: 12-24V AC/DC, full voltage range
Operation Current:
- Quiescent - 16mA
- Maximum - 78mA (Relays operating)
Operation Modes:
a) Multi User Mode
-- 100 user codes for output 1 (user number 00-99), Auto or Manual Code Entry
-- 10 user codes for output 2 (user number 0-9), Auto or Manual Code Entry
b) Single User Mode
-- 1 user code for each output and the special functions, Auto or Manual Code Entry
User Code Combinations:
a) Single User Mode -- 10,000 (User Code fixed at 4 digits)
b) Multi User Mode -- 110,000,000 (User Code 4-8 digits programmable)
Input Sensing Terminals:
a) Egress Input -- Normally open referring to (–) ground
b) Door Position Sensor Input -- Normally closed referring to (–) ground
c) Output 1 Stop Control -- Normally open referring to (–) ground
Output Contacts:
OUTPUT 1 : Normally Closed and Normally Open Dry Contacts, 5A / 24VDC Max. Rating
OUTPUT 2 : Normally Closed and Normally Open Dry Contacts, 1A / 24VDC Max. Rating
Tamper Switch Contact:
Normally Closed Dry Contact, 50mA / 24VDC Max.
Duress, Inter-lock & Key Active Output Rating:
NPN Open Collector switches to ground when active, 24VDC / 100mA Sink
Auto Refreshing Time During Code Entry:
a) Eash Digit Maximum Entry Time Limit -- 10 seconds
b) Eash Code Maximum Entry Time Limit -- 30 seconds
Weatherproof:
IP-66
Operation Temperature:
-20°C to +70°C
Ambient Humidity:
5-95% relative humidity (non-condensing)
Dimensions:
DK-9350 --- 125(H) X 79(W) X 46/54(D)mm
Weight:
DK-9350 --- 530g net
Housing:
DK-9350 --- Cast Aluminum, Powder paint coa�ng, 1.5mm Stainless steel
