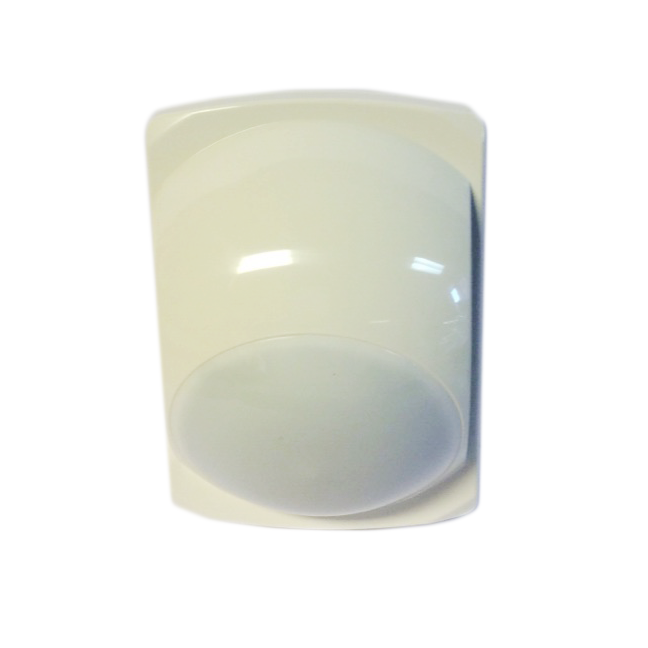

PA 4810S - IR detektor 12x12m

Ordinarie pris: 1 091,84 kr
Pris med rabatt: 327,55 kr
Artikelnr: 09407
Köp:

PA4810S - IR detektor, Veggmontert, 12x12 Meter. NB! Rabatten gjelder bare til det att varen er slutt i lager. Garantien gjelder bare att produkten skal fungere ved leveranse, ikke 1 års garanti.

Innendørs IR detektor. for montering på vegg.

Funksjoner:

Quad Element PIR + Fuzzy Logic Signal Processing
Precise mirror optics and quad element assure high reliability and catch performance
View finder for quick precise adjustment
Trouble Alarm
Fine Motion Detection Alarm Memory
Remote LED Control

Data:

Product type     Passive infrared sensor
Detection system     Passive infrared (Quad, Fuzzy logic)
Coverage     Wide angle 12m (40ft) max.
Sensitive zones     18 pairs (72)
Mounting positions     indoor wall/pillar
Supply voltage     10 to 30VDC (non-polarity)
Current consumption     32mA max.
Alarm output     Dry contact relay (NO/NC changeover)
Reset: approx. 2 sec
30V (AC/DC) 0.25A max. (resistive load)
(Protective resistance 3.3Ω built-in)
Tamper output     Dry contact (NC) Open when cover is detached
30V (AC/DC) 0.1A max. (resistive load)
Alarm LED (Red)     Blinking at warm-up (every 0.5 sec)
Lighting at alarm (approx. 2 sec)
Lighting at memory activated
Lighting at trouble alarm (LED disable)
Memory control     Controls memory indication/reset with terminal M/C
LED control     Controls alarm LED indication with terminal L/C
Trouble alarm     Unit trouble: monitors damage on inner circuitry/wiring
Operate: initiate trouble alarm
Low power voltage: monitors drop in power voltage
Operate: initiate trouble alarm
Failure to replace:
Operate: initiate trouble alarm
Ambient temperature     -10°C to +50°C (+14°F to +122°F) without condensation
Wiring     Terminals
Area adjustment     Vertically: 20 degrees
Horizontally: ±5 degrees
Weight     165g (5.8oz)
Supplied accessory     Fixing screw (4 x 30): 2pcs

PA4810S - IR detektor, Veggmontert, 12x12 Meter. NB! Rabatten gjelder bare til det att varen er slutt i lager. Garantien gjelder bare att produkten skal fungere ved leveranse, ikke 1 års garanti.

Innendørs IR detektor. for montering på vegg.

Funksjoner:

Quad Element PIR + Fuzzy Logic Signal Processing
Precise mirror optics and quad element assure high reliability and catch performance
View finder for quick precise adjustment
Trouble Alarm
Fine Motion Detection Alarm Memory
Remote LED Control

Data:

Product type     Passive infrared sensor
Detection system     Passive infrared (Quad, Fuzzy logic)
Coverage     Wide angle 12m (40ft) max.
Sensitive zones     18 pairs (72)
Mounting positions     indoor wall/pillar
Supply voltage     10 to 30VDC (non-polarity)
Current consumption     32mA max.
Alarm output     Dry contact relay (NO/NC changeover)
Reset: approx. 2 sec
30V (AC/DC) 0.25A max. (resistive load)
(Protective resistance 3.3Ω built-in)
Tamper output     Dry contact (NC) Open when cover is detached
30V (AC/DC) 0.1A max. (resistive load)
Alarm LED (Red)     Blinking at warm-up (every 0.5 sec)
Lighting at alarm (approx. 2 sec)
Lighting at memory activated
Lighting at trouble alarm (LED disable)
Memory control     Controls memory indication/reset with terminal M/C
LED control     Controls alarm LED indication with terminal L/C
Trouble alarm     Unit trouble: monitors damage on inner circuitry/wiring
Operate: initiate trouble alarm
Low power voltage: monitors drop in power voltage
Operate: initiate trouble alarm
Failure to replace:
Operate: initiate trouble alarm
Ambient temperature     -10°C to +50°C (+14°F to +122°F) without condensation
Wiring     Terminals
Area adjustment     Vertically: 20 degrees
Horizontally: ±5 degrees
Weight     165g (5.8oz)
Supplied accessory     Fixing screw (4 x 30): 2pcs
