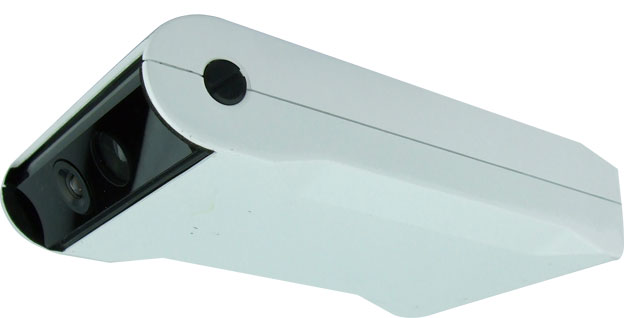

AVM602 - Kamera, 480 TVL, IR ljus, IR-detektor, push-video
AVM602 är en analog kamera med 480 tvl upplösning som passar till äldre system där du bara vill byta ut en kamera och inte hela systemet. Kameran har inbyggt IR-ljus och IR detektor för push video med avtechs dvr lagringsenheter.

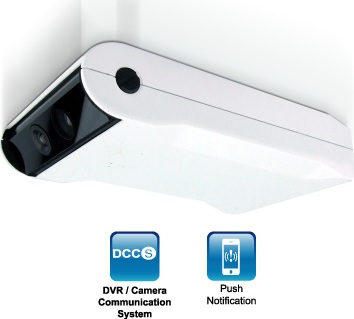

IVS Human Detection Camera (w / Push Notification)
1. Built-in Infrared sensor alarm for human detection and sending push notifications to
your iPhone (when used with IVS DVR series)
2. Supports DVR / Camera Communication System (DCCS) Technology
-- There’s no need to additionally connect RS485 control wires for camera control because the control
signals can be transferred by coaxial cables directly.
-- Camera installation is highly simplified to lower labor cost and working hours.
3. IR LEDs Built-in for 24-hour day & night surveillance
4. Smart Light Control to dynamically adjust image performance for clear and accurate
images
Data:
Model: AVM602V
Pick-up Element: 1/3" HR color CCD image sensor
Number of Pixels: 768(H)x494(V) <NTSC> / 752(H)x582(V) <PAL>
Resolution: 480 TVL
Min. Illumination: 0.17 Lux / F2.0 (IR LED OFF)
Electronic Shutter: 1/60 (1/50) to 1/100,000 sec.
S/N Ratio: More than 48dB (AGC off)
IR LED: 12 units
Day & Night: YES
Smart Light Control: YES
Lens: f3.6mm / F2.0
Lens Angle: 92°
Video Output: 1.0Vp-p composite, 75Ω
PIR Detection Range: 40° wide angle with 5m long distance at 2m height (under 25°C)
DCCS Support: YES
Power Source (±10%): DC12V / 500mA
Current Consumption (±10%): 110mA (IR OFF), 260mA (IR ON)
Dimensions (mm)** 90(W) x 145(H) x 32(D)
Net Weight (g): 220
