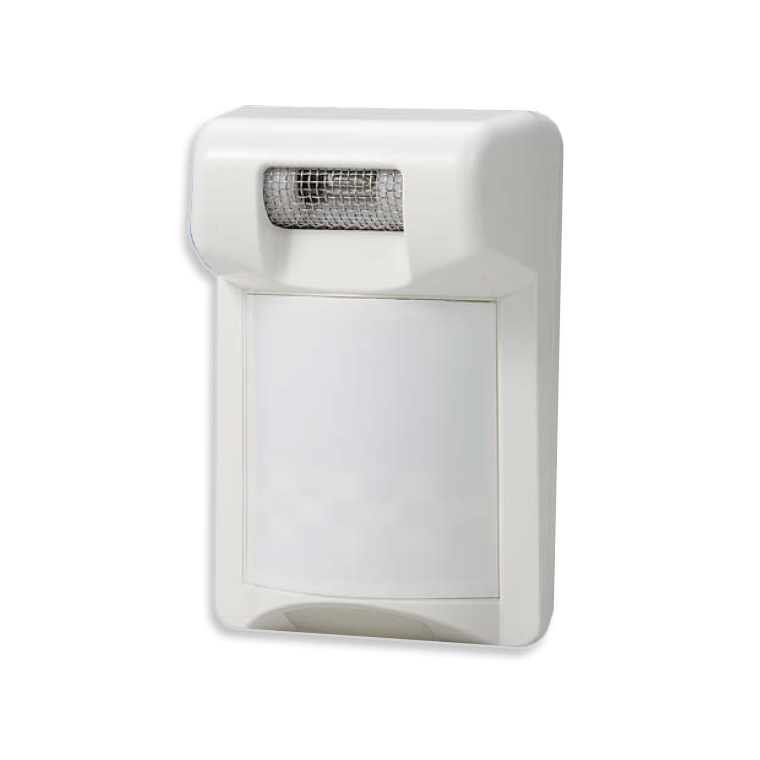

FP-2500E - Flamdetektor och IR-detektor med 10 meters räckvidd
Enheten kan användas för att larma när en flamma tänds eller när en person detekteras. Eller programmeras att larma när en kombination av en människa och flamma detektera inom en viss tid. När larmet går växlas en reläkontakt i enheten.
Info:
A combination UV flame sensor and wide-angle PIR with up to 10m flame and intrusion detection for safer indoor protection of your premises.
Features
High sensitivity ultraviolet flame sensor + wide angle intrusion PIR
Dual ouput modes; AND/OR
Forced output mode following continued flame detection
Alarm memory function
Multi-zone PIR technology provides pet immunity up to 20kg (40lbs)
PIR area adjustment
Detection timer
Data:
Model FP-2500E
Detection system Ultraviolet rays detection (185~260nm)
Detection distance 10m (33ft) max. from 7cm (2.75") flame
Detection area angle Approx. 120 degrees conically
Detection setting Detection timer (1sec, 3sec)
Detection sensitivity (H: 100%, L: 50%)
* Detection sensitivity can be set in "Individual" ("OR") mode.
* H: 100% is fixed in "AND" mode.
Alarm LED (RED) Part of flame sensor
• Lighting at alarm (detection time + off delay Approx. 2 sec.)
• Blinking (3 min) and Lighting (47 min) at memory
Detection system Passive Infrared
Detection area Wide Angle 10m (33ft) Max. 29 pairs
Detection area angle adjustment 3 steps
Alarm LED (RED) Part of passive sensor
• Lighting at alarm (one shot, Approx. 2 sec.)
• Blinking (3 min) and Lighting (47 min) at memory
• Lighting at trouble.
Power supply 10-30VDC (non-polarity)
current consumption 20mA Max.
Alarm output
Individual mode
Flame sensor output (From alarm terminal 1)
• Dry contact relay (Semi-Conductor) (N.O./N.C. selectable)
• Contact operation: Detection time + off delay.(Approx.2sec.)
• Contact capacity :30V (AC/DC) 0.25AMax.(resistive load)
Passive sensor output (From alarm terminal 2)
• Dry contact relay (Semi-Conductor) (N.O./N.C. selectable)
• Contact operation: One shot (Approx. 2 sec.)
• Contact capacity: 30V(AC/DC) 0.25AMax.(resistive load)
AND mode
Alarm signal outputs from alarm terminal 1、2、 when both sensors detect during the selected time.
• Dry contact relay (Semi-Conductor) (N.O./N.C. selectable)
• Contact operation: Min. 2 sec. (Max. depends on AND mode timer setting)
• Contact capacity: 30V (AC/DC) 0.25A Max.(resistive load)
Tamper output Dry contact relay NC
(Activated when the front cover is detached)
Contact capacity: 30V (AC/DC) 0.1A Max. (resistive load)
Alarm memory Reset after blinking (3 min) and lighting (47 min)
(Operate flame and passive LED individually)
Ambient temperature range -15°C to +55°C (5°F to +131°F) without condensation
Mounting position Indoor wall surface (Ceiling with option attachment “BCW-401”)
Connections Self-up terminal
Weight Approx. 120g
Appearance Resin
